Automatic Cleaning Device
Back
Introduction: the automatic cleaning device can regularly and automatically use sponge balls to clean the exchanger pipes of the refrigerator and compressor, so as to improve the working efficiency of the machine and save energy and costs.
Anti fouling method of automatic cleaning device: clean the heat exchanger automatically and repeatedly in a physical way dozens of times a day, so that there is no time for fouling and scaling can be effectively prevented.
characteristic:
– physical cleaning without energy loss
– no need to stop the machine for cleaning, and clean it when the refrigerator is working.
– compared with the traditional decontamination method, it can save 0~20% of the energy loss caused by the dirt of the heat exchanger.
Workflow:

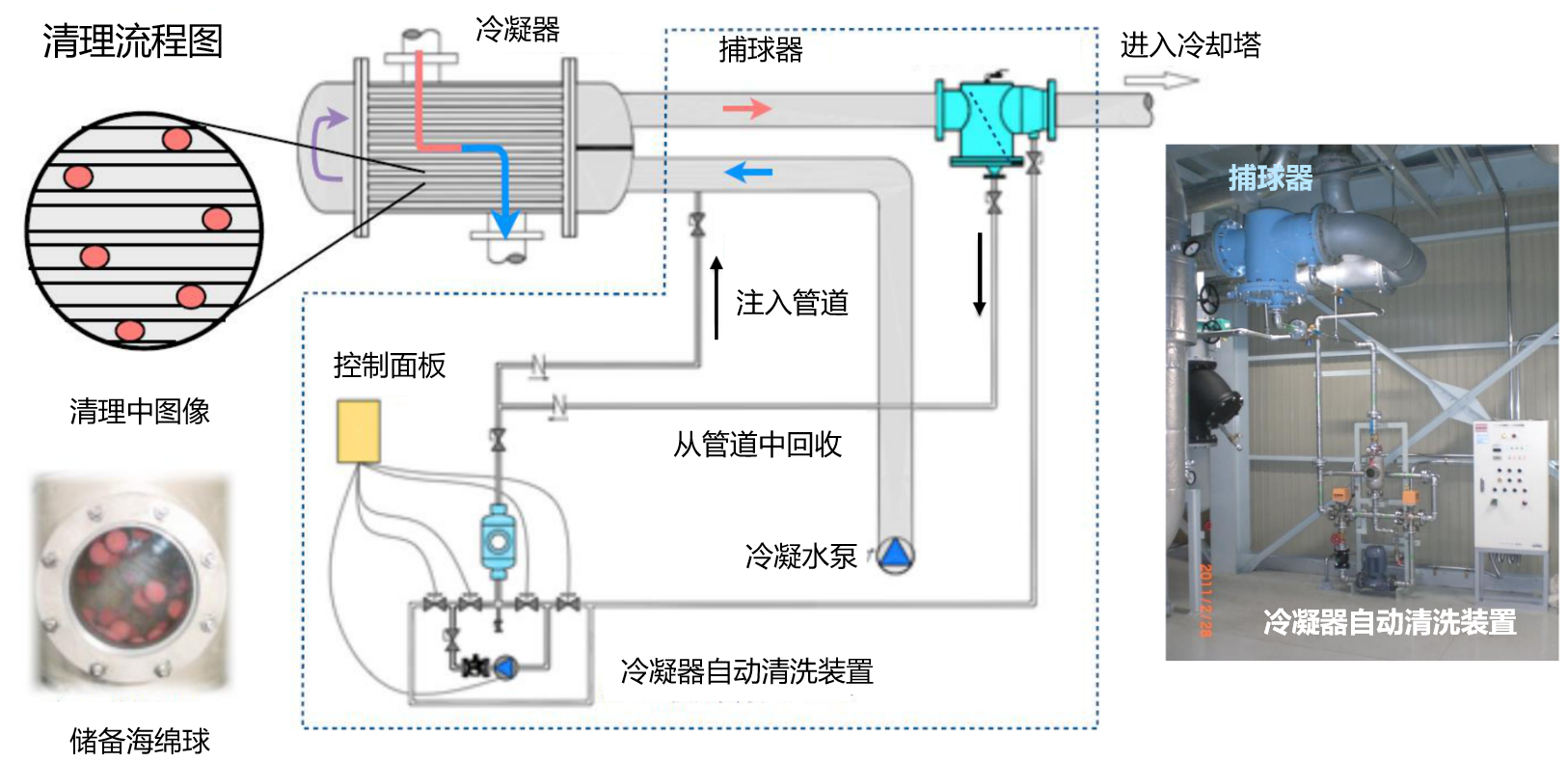

The processing flow of the automatic cleaning device (as shown in the following figure):
1. The automatic cleaning device injects the cleaning ball into the cooling water pipe of the refrigerator.
2. Collect cooling water to drive the cleaning ball to flow and clean the pipeline.
3. The automatic cleaning device collects the cleaning ball from the collection device and stands by until the next cleaning.
• cleaning time for one cycle: about 2 minutes / recommended cleaning cycle: every 30 minutes.
Advantages of automatic cleaning device:
1. Save electricity and reduce costs
→ maintaining the condenser in a high efficiency state can save 5 ~ 30% of energy consumption and always keep the pipeline clean.
2. There is no need to clean the heat exchange tube
→ it can save cleaning costs and downtime (traditional decontamination method: the refrigerator must be shut down and cleaned once or twice a year)
3. Improve the service life of the machine
→ it can prevent damage or dirt caused by chemical cleaning, as well as corrosion problems caused by dirt, and prolong the service life of the equipment.
User groups:
1. Large shopping malls, office buildings, office buildings
2. Manufacturing, semiconductor industry, etc
3. Large factories, chemical plants, etc
