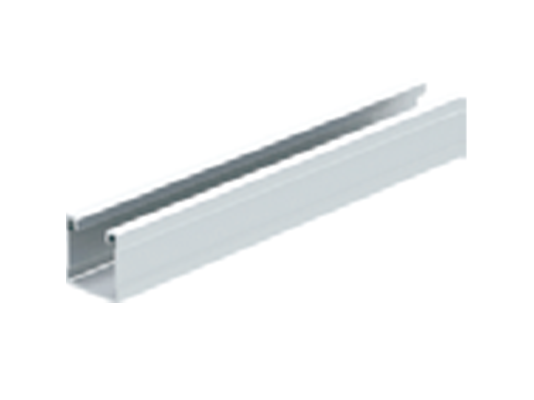

Single splicing C-shaped channel steel
Back
Product Description:
1. C-shaped channel steel is equipped with stiffeners to increase the bending resistance.
2. The inner crimping of C-shaped channel steel is serrated, which has the functions of shear resistance, slip resistance, impact resistance, etc., and can form a good cooperation with relevant accessories.
3. The appearance of the surface is treated without later maintenance, which not only improves the anti-corrosion performance of the product, but also looks beautiful.
4. Material: Q235B carbon steel, meeting GB / t700-2006 standard.
5. Surface treatment: epoxy coating, also provide surface treatment such as hot dip galvanizing and passivation galvanizing.
1. C-shaped channel steel is equipped with stiffeners to increase the bending resistance.
2. The inner crimping of C-shaped channel steel is serrated, which has the functions of shear resistance, slip resistance, impact resistance, etc., and can form a good cooperation with relevant accessories.
3. The appearance of the surface is treated without later maintenance, which not only improves the anti-corrosion performance of the product, but also looks beautiful.
4. Material: Q235B carbon steel, meeting GB / t700-2006 standard.
5. Surface treatment: epoxy coating, also provide surface treatment such as hot dip galvanizing and passivation galvanizing.
|
Product Name |
Wall（mm） |
Section height（mm） |
Weight（kg／m） |
Standard length（m） |
|
Channel21／2.0 |
2.00 | 21 | 1.47 | 3/6 |
|
Channel41／2.0 |
2.00 | 41 | 2.18 |
3/6 |
|
Channel52／2.5 |
2.50 | 52 | 3.01 |
3/6 |
|
Channel62／2.5 |
2.50 | 62 | 3.40 |
3/6 |
|
Channel72／2.75 |
2.75 | 72 | 4.20 |
3/6 |
